 Products Capacitive Pulse Power / High Voltage PULSED POWER

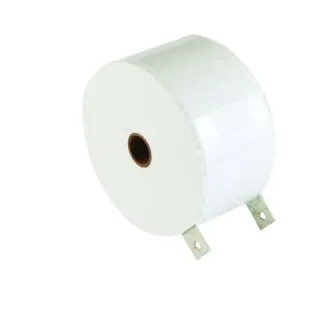

  • DSC_5483-700d492-2-CMYK-retouched-no-marking-598x400
DSC_5483-700d492-2-CMYK-retouched-no-marking-598x400
Advanced

PULSED POWER

The Power Ring’s patented technology offers extreme energy storage/pulse power density in an innovative smaller package that allows for modularity and mounting flexibility.

This dry film, environmentally clean technology, is designed with terminals/interconnect systems that result in the lowest available ESL and peak discharge currents in excess of 250,000 amps.
Add to inquiry
DC Volt. (Vdc) CAP. RANGE (µF) Series/Standard Part # Height Diameter Range Peak Current Range (kA)
750 500 – 5,000 771D 3.35″ (85 mm) 4.9″ – 13.6″ (126 – 352 mm) 5.6 – 56
750 1,000 771D102 3.35″ (85 mm) 6.5″ (165 mm) 12
750 5,000 771D104 3.35″ (85 mm) 13.9″ (352 mm) 56
750 2,500 771D105 3.35″ (85 mm) 10″ (255 mm) 28
750 650 771D120 3.35″ (85 mm) 5.4″ (138 mm) 7
1,500 500 – 3,000 772D 6.10″ (155 mm) 6.5″ – 15″ (165 – 380 mm) 11 – 69
1,500 3,000 772D102 6.10″ (155 mm) 15″ (380 mm) 69
2,500 100 – 1,000 773D 5.00″ (127 mm) 5.25″ – 15″ (137 – 380 mm) 6.7 – 68
2,500 1,000 773D103 5.00″ (127 mm) 14.84″ (377 mm) 68
2,500 500 773D104 5.00″ (127 mm) 10.7″ (272 mm) 34
2,500 100 773D105 (pdf) 5.00″ (127 mm) 5.25″ (137mm) 10
3,500 100 – 650 774D 6.23″ (158 mm) 5.75″ – 13.7″ (146 – 368 mm) 10 – 68
3,500 100 774D103 6.23″ (158 mm) 5.97″ (152 mm) 10
3,500 140 774D107 6.23″ (158 mm) 6.65″ (170 mm) 14
3,500 650 774D108 6.23″ (158 mm) 13.7″ (350 mm) 66
8,000 5-50 775D 3.35″ (85 mm) 4.5″ – 14″ (115 mm – 355 mm) 5.8-10
8,000 5 775D104 (pdf) 3.35″ (85 mm) 4.70″ (119.7 mm) 10
8,000 10 775D103 (pdf) 3.35″(85 mm) 6.35″ (161.3 mm) 20
8,000 17 775D102 (pdf) 3.35″ (85 mm) 8.50″ (215.9 mm) 34.5
8,000 50 3.35″ (85 mm) 14.07″ (355 mm) 100
