Hitec

Button Load Cell

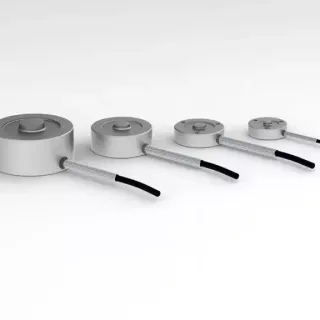

Button Load Cells are strain gage based transducers with temperature compensation and excellent overall performance. This type provides a range of capacities up to 150 kN or 30 klb with better than ±0.5% (full scale) non-linearity. Three tapped holes are provided on the underside for ease of mounting. Fully welded cover, amplified and digitised versions are available on request.

Model number: ALBM
Add to inquiry
download
Parameter Range Notes
Capacity (metric) 100, 200, 500, 1000, 2000, 5k, 10k, 15k, 20k, 50k, 100k, 150k N With metric threads as standard
Capacity (lb) 25, 50, 100, 250, 500, 1000, 2000, 3k, 4k, 5k, 7.5k, 10k, 15k, 20k, 30k lb With UNF threads as standard
Rated Output (RO) 2mV/V Nominal (1mV/V for 100N and 25lb.) Amplified and digitised versions available to order.
Non-linearity ±0.5% FS MAX
Hysteresis ±0.3% FS MAX
Repeatability ±0.1% FS MAX
Zero balance 2% FS MAX 10% FS MAX for welded version
Temp Shift Zero 0.01% FS/°C
Temp Shift Span 0.02% FS/°C
Compensated Temp Range -15 °C TO 70 °C Wider range available to order
Operating Temp Range -20 °C TO 80 °C Wider range available to order
IP Rating IP64 – Bonded Cover, IP66 – Bonded Cover Bonded cover is standard. Welded cover available to order.
Bridge resistance 350 Ohms Nominal for 100-500N & 25-100lb., 700 Ohms Nominal for 1kN & 250lb.
Excitation 5V Recommended, 10V Max
Safe overload 150% F.S.
Total error ±0.8% FS MAX Non-linearity and hysteresis
TEDS IEEE1451.4 TEDS Optional
