Miniature S-Beam Load Cell

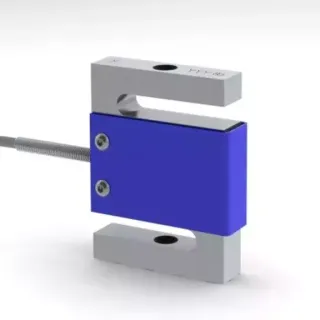

The Miniature S-Beam Load Cell is a bi-directional Aluminium strain gauge based transducer with high performance and built-in temperature compensation. This design provides better than ±0.1% (full scale) non-linearity and includes overload protection in both tension and compression directions. Options include IEEE1451.4 TEDS capability.

Model number: MSBLC

Add to inquiry

download

Key Features

Parameter	Range	Notes
Capacity	2, 5 & 10 lbf.
Rated Output (RO)	2mV/V nom.
Non-linearity	±0.1% of RO
Hysteresis	±0.1% of RO
Repeatability	±0.1% of RO
Zero balance	±3% of RO
Temp Shift Zero	±0.01% of RO/°F (±0.018 of RO/°C)
Temp Shift Span	±0.02% of LOAD/°F (±0.036 of LOAD/°C)
Compensated Temp Range	5 to 160 °F (-15 to 71 °C)
Operating Temp Range	-60 to 200 °F (-51 to 93 °C)
IP Rating	IP40
Bridge resistance	1000Ω
Excitation	5V recommended, 10V Max
Calibration (STD)	5 pt. Tension & Compression
Safe overload	150% of RO
Material	Aluminium
Deflection	0.004" [0.1mm] nom.
Weight	0.02 lb [9 g]
Connector	DB9 Male or Female	specify at time of order
Thread	M3x0.5 or #4-40	specify at time of order
TEDS	IEEE1451.4 TEDS	Optional
