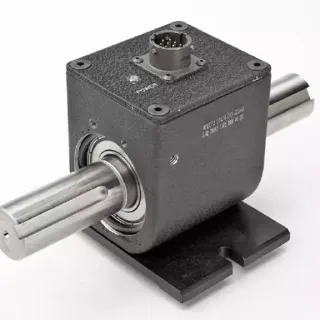

Rotary Shaft Slip Ring Torque Sensor

These sensors are designed to measure rotating drive torque using a conventional shaft-to-shaft configuration for in-line placement. The design incorporates a coin silver slip ring assembly that transmits excitation voltage to, and output signals from, the rotating sensor. These sensors can be supplied with Auto-ID, which eliminates scaling when used with the PTI or PMAC 3000 instruments. An optical encoder to measure angle or speed is also available with this model.

Model number: 01324

Add to inquiry

download

Key Features

Capacity	50 in-oz to 20,000 in-lbs (0.35 to 2300 Nm)
Overload capacity	150% of F.S.
Output at F.S.	2.0 mV/V nominal
Non-linearity	0.10% of F.S.
Hysteresis	0.10% of F.S.
Zero balance	1.00% of F.S.
Compensated temperature	70 to 170°F
Useable temperature	-40 to +185°F
Temperature effect on zero	0.002% of F.S./°F
Temperature effect on span	0.002% of Rdg./°F
Bridge resistance	1000 Ohms
Excitation voltage, maximum	20 Vdc
Maximum shaft speed	5000 RPM
