Portable Sensor Display Strain Bridge Input

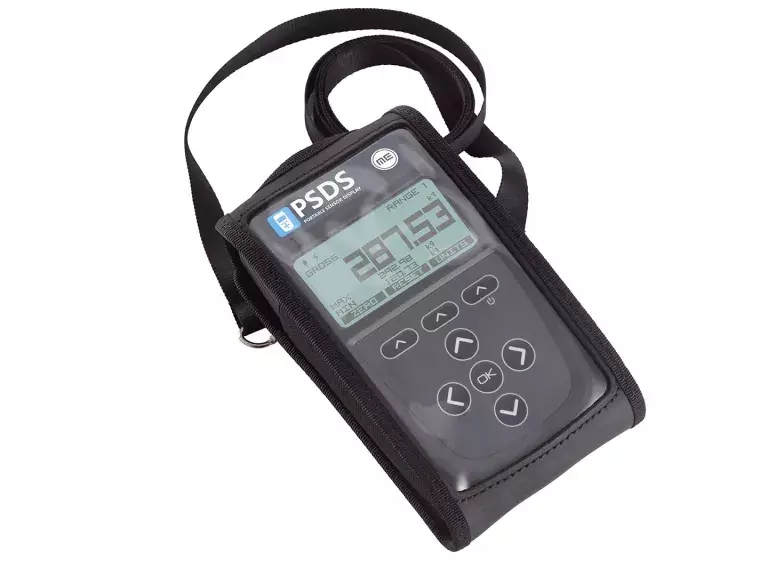

The PSDS allows simple display of strain bridge based measurements such as load cells and pressure gauges with sensitivity up to +/-480 mV/V. Up to six calibration ranges are available allowing for different loading modes (tension and compression) or different sensors. Each calibration range will remember settings that contribute to the user experience such as selected units and tare values.

TEDS devices using templates 33, 40 and 41 can be connected and will update the viewed calibration.
Up to six display modes available. These determine what is visible on the LCD display and what actions are available from the set of three soft keys.
Full configuration is available with a free PC based toolkit. Some simple configuration such as two point calibration is available from within the handheld using the menu system.

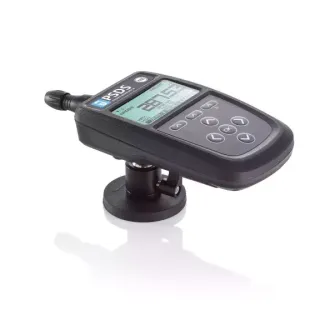

This module can be either used as a handheld device or, using the optional mounting accessories, or attached to equipment, dashboards, walls or desks.
The PSDS is powered by two internal non-rechargeable AA alkaline batteries.
Add to inquiry
External Dimensions 170.0 x 94.0 x 42.0 mm 6.7 x 3.7 x 1.7 in
Weight 365 g 0.8 lb
Measurement Method 6 Wire Can accept 4 wire input
Excitation Voltage Min: 3.2 VDC Max: 3.4 VDC
Drive Capability Min: 85 Ohm Max: 10,000 Ohm
Sensitivity FSR Ranges Min: ±7.5 mV/V Max: ±480 mV/V
Linearity ±2 ppm/FSR In high quality operating mode
Offset Temperature Stability 12 nV/°C
Internal Resolution 24 bit
Resolution at 1 SPS 1,100,000 Counts 20 bit
Resolution at 10 SPS 550,000 Counts 19 bit
Resolution at 2400 SPS 6,500 Counts 14.3 bit
Display Resolution 128 x 64 pixels
Buzzer Acoustic Output 45 dB
Power Supply 2x AA (LRx) or USB powered
Power Consumption 35 mA Measurement operation
Standby Current 75 uA
Battery Life Low Quality 1Hz 220 Hrs
Battery Life High Quality 1200Hz 60 Hrs
Operating Temperature Range Min: -10°C Max: 50°C
Storage Temperature Range Min: -20°C Max: 80°C
Operating Humidity Range Min: 0 %RH Max: 95 %RH
Environmental Protection IP64 (With connector mated or unmated)
