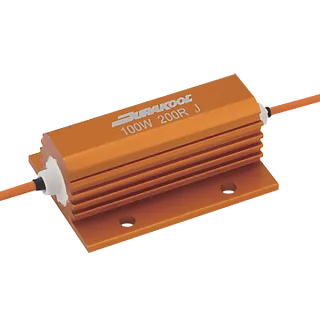

xv3-durakool-high-power-aec-q200-ev-hev-phev-precharge-discharge-resistor
Durakool

XV3 Series

The XV3 is a high-performance 100W automotive-grade resistor, specifically designed for high-voltage cable applications in electric vehicles (EV), hybrid electric vehicles (HEV), and plug-in hybrid electric vehicles (PHEV). Its intrinsically safe design combined with non-inductive winding technology ensures high precision and low interference operation, making it ideal for the demanding environment of automotive electronics.
Add to inquiry
download

🚗 Electric Vehicle Applications

  • High-Voltage Cable Systems – Ensures the safety and stability of high-voltage circuits in electric and hybrid vehicles

  • Battery Management System (BMS) – Used for monitoring and balancing battery modules, improving battery efficiency and lifespan

  • Electric Motor Control – Involved in current sensing and power regulation in motor drive systems

  • DC/DC Converters & Inverters – Provides reliable voltage division and power regulation functions

  • Charging Modules and Protection Circuits – Ensures safe charging processes, preventing overcurrent or overheating issues



⚡ Industrial and Energy Applications

  • High-Voltage Power Supply & Power Electronics – Used for power monitoring and control

  • Renewable Energy Equipment – Applied in solar and wind energy inverters to enhance power conversion efficiency

  • Smart Grids and Energy Metering – Provides high-precision resistance measurements in power distribution and metering systems

Parameter Specification
Resistance Range 10Ω to 250Ω
Resistance Tolerance ±0.5% to ±10%
Technology Type Metal Wire Wound
Rated Power 40W to 70W
Max Operating Voltage 850V DC
Packaging Type Compact Aluminum Housing, Intrinsically Safe Design
Terminal Type 6.3mm Blade Terminal
Temperature Range -55°C to +200°C
Temperature Coefficient (TCR) 260ppm/°C
Special Features Non-Inductive Winding Technology, Suitable for EV, HEV, PHEV
