 Products Resistors Pre-Charge / Discharge Resistors XV5 Series
  • xv5-durakool-high-power-aec-q200-ev-hev-phev-precharge-discharge-resistor

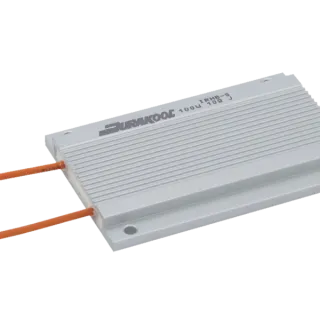

xv5-durakool-high-power-aec-q200-ev-hev-phev-precharge-discharge-resistor
Durakool

XV5 Series

The XV5 series power resistors are designed to meet the demanding needs of electric vehicles (EV), hybrid electric vehicles (HEV), and plug-in hybrid electric vehicles (PHEV). With a power rating of 100W to 500W and a resistance range of 1Ω to 5KΩ, these resistors ensure optimal performance for power management and current sensing applications. The high-conductivity aluminum enclosure enhances heat dissipation, providing stable operation in harsh environments.
Add to inquiry
download

  • High Power Density, supporting 100W to 500W power ratings, ideal for high-power applications.

  • Wide Voltage Compatibility, operating between 850VDC and 1500VDC, suitable for high-voltage automotive systems.

  • Precise Resistance Values, available in 1Ω to 5KΩ resistance range for flexible applications.

  • Low Tolerance, ±0.5% precision tolerance for accurate and consistent performance.

  • Superior Heat Dissipation, chassis-mounted aluminum case ensures efficient thermal management.

  • Extended Temperature Range, operates reliably from -55°C to +200°C, suitable for extreme conditions.

  • Stable Temperature Coefficient, 260ppm/°C minimizes performance fluctuations due to temperature changes.

  • EV, HEV, and PHEV Power Management

  • DC Bus Voltage Divider

  • Current Sensing and Power Distribution

  • Variable Frequency Drives and Motor Control

  • Charging Stations and Energy Recovery Systems

Parameter Specification
Power Rating 100W – 500W
Voltage Range 850VDC – 1500VDC
Resistance Range 1Ω – 5KΩ
Tolerance ±0.5%
Package Type Chassis-mounted aluminum case
Operating Temperature -55°C to +200°C
Temperature Coefficient 260ppm/°C
